NON-INSULATED RING TERMINALS



  • Available in following standards: DIN46234, DIN 46211 and JIS

  • Material/Type: E-CU

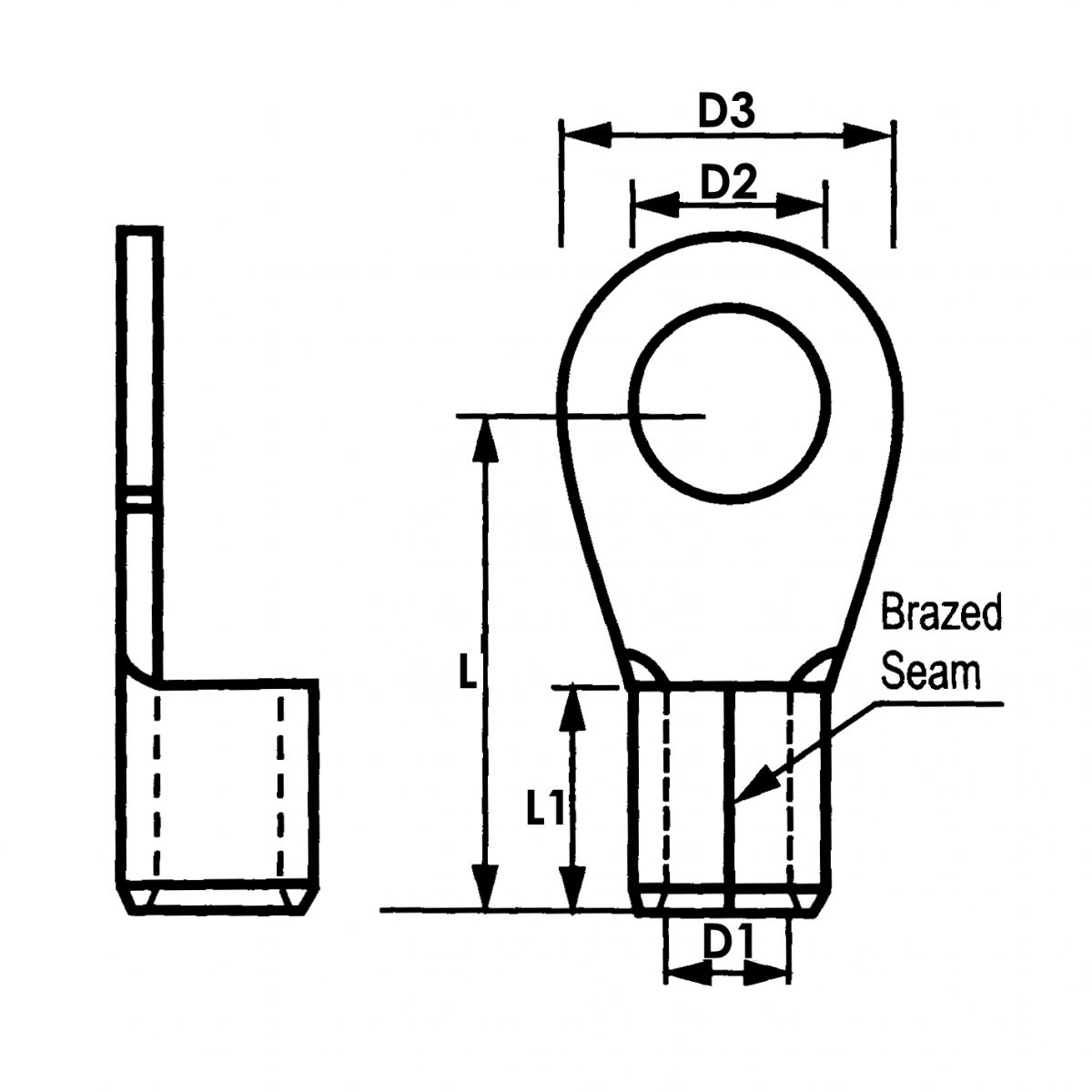

Part no PCS / PACK D3 mm L1 mm D1 mm L mm D2 mm WIRE RANGE mm²
GDR2.5-1 100 / 500 6.0 5.0 1.8 11.0 2.7 0.5-1.5
GDR3-1 100 / 500 6.0 5.0 1.8 11.0 3.2 0.5-1.5
GDR3.5-1 100 / 500 6.0 5.0 1.8 11.0 3.7 0.5-1.5
GDR4-1S 100 / 500 6.8 5.0 1.8 12.0 4.3 0.5-1.5
GDR4-1 100 / 500 8.0 5.0 1.8 12.0 4.3 0.5-1.5
GDR5-1S 100 / 500 8.0 5.0 1.8 13.0 5.3 0.5-1.5
GDR5-1 100 / 500 10.0 5.0 1.8 13.0 5.3 0.5-1.5
GDR6-1 100 / 500 11.0 5.0 1.8 15.0 6.5 0.5-1.5
GDR8-1 100 / 500 14.0 5.0 1.8 17.5 8.4 0.5-1.5
GDR10-1 100 / 500 18.0 5.0 1.8 19.0 10.5 0.5-1.5
GDR3-2.5 100 / 500 6.0 5.0 2.3 11.0 3.2 1.5-2.5
GDR3.5-2.5 100 / 500 6.0 5.0 2.3 11.0 3.7 1.5-2.5
GDR4-2.5 100 / 500 8.0 5.0 2.3 12.0 4.3 1.5-2.5
GDR4-2.5S 100 / 500 6.8 5.0 2.3 12.0 4.3 1.5-2.5
GDR5-2.5S 100 / 500 8.0 5.0 2.3 14.0 5.3 1.5-2.5
GDR5-2.5 100 / 500 10.0 5.0 2.3 14.0 5.3 1.5-2.5
GDR6-2.5 100 / 500 11.0 5.0 2.3 16.0 6.5 1.5-2.5
GDR8-2.5 100 / 500 14.0 5.0 2.3 17.0 8.4 1.5-2.5
GDR10-2.5S 100 / 500 15.0 5.0 2.3 19.0 10.5 1.5-2.5
GDR10-2.5 100 / 500 18.0 5.0 2.3 19.0 10.5 1.5-2.5
GDR12-2.5 100 / 500 18.0 5.0 2.3 19.0 13.0 1.5-2.5
GDR4-6 100 / 500 8.0 6.0 3.6 14.0 4.3 2.5-6.0
GDR5-6 100 / 500 10.0 6.0 3.6 15.0 5.3 2.5-6.0
GDR6-6 100 / 500 11.0 6.0 3.6 16.0 6.5 2.5-6.0
GDR8-6 100 / 500 14.0 6.0 3.6 19.0 8.4 2.5-6.0
GDR10-6 100 / 500 18.0 6.0 3.6 21.0 10.5 2.5-6.0
GDR12-6 100 / 500 19.0 6.0 3.6 21.5 13.0 2.5-6.0
GDR5-10 100 / 500 10.0 8.0 4.5 16.0 5.3 10.0
GDR6-10 100 / 500 11.0 8.0 4.5 17.0 6.5 10.0
GDR8-10 100 / 500 14.0 8.0 4.5 20.0 8.4 10.0
GDR10-10 100 / 500 18.0 8.0 4.5 21.0 10.5 10.0
GDR12-10 100 / 500 22.0 8.0 4.5 23.0 13.0 10.0
GDR14-10 100 / 500 22.0 8.0 4.5 23.0 15.0 10.0
GDR5-16 100 / 500 11.0 10.0 5.8 11.0 5.3 16.0
GDR6-16 100 / 500 11.0 10.0 5.8 11.0 6.5 16.0
GDR8-16 100 / 500 14.0 10.0 5.8 14.0 8.4 16.0
GDR10-16 100 / 500 18.0 10.0 5.8 18.0 10.5 16.0
GDR12-16 100 / 500 22.0 10.0 5.8 22.0 13.0 16.0
GDR14-16 100 / 500 22.0 10.0 5.8 22.0 15.0 16.0
GDR16-16 100 / 500 22.0 10.0 5.8 22.0 17.0 16.0
GDR5-25 100 / 500 12.0 11.0 7.5 25.0 5.3 25.0
GDR6-25 100 / 500 12.0 11.0 7.5 25.0 6.5 25.0
GDR8-25 100 / 500 16.0 11.0 7.5 25.0 8.4 25.0
GDR10-25 100 / 500 18.0 11.0 7.5 26.0 10.5 25.0
GDR12-25 100 / 500 22.0 11.0 7.5 31.0 13.0 25.0
GDR14-25 100 / 500 22.0 11.0 7.5 31.0 15.0 25.0
GDR16-25 100 / 500 28.0 11.0 7.5 35.0 17.0 25.0
GDR6-35 100 / 500 15.0 12.0 9.0 26.0 6.5 35.0
GDR8-35 100 / 500 16.0 12.0 9.0 26.0 8.4 35.0
GDR10-35 100 / 500 18.0 12.0 9.0 27.0 10.5 35.0
GDR12-35 100 / 500 22.0 12.0 9.0 31.0 13.0 35.0
GDR16-35 100 / 500 28.0 12.0 9.0 36.0 17.0 35.0
GDR6-50 100 / 500 18.0 16.0 11.0 34.0 6.5 50.0
GDR8-50 100 / 500 18.0 16.0 11.0 34.0 8.4 50.0
GDR10-50 100 / 500 18.0 16.0 11.0 34.0 10.5 50.0
GDR12-50 100 / 500 22.0 16.0 11.0 36.0 13.0 50.0
GDR16-50 100 / 500 28.0 16.0 11.0 40.0 17.0 50.0
GDR6-70 100 / 500 22.0 18.0 13.0 38.0 6.5 70.0
GDR8-70 100 / 500 22.0 18.0 13.0 38.0 8.4 70.0
GDR10-70 100 / 500 22.0 18.0 13.0 38.0 10.5 70.0
GDR12-70 100 / 500 22.0 18.0 13.0 38.0 13.0 70.0
GDR14-70 100 / 500 22.0 18.0 13.0 38.0 15.0 70.0
GDR16-70 100 / 500 28.0 18.0 13.0 42.0 17.0 70.0
GDR8-95 100 / 500 24.0 20.0 15.0 42.0 8.4 95.0
GDR10-95 100 / 500 24.0 20.0 15.0 42.0 10.5 95.0
GDR12-95 100 / 500 24.0 20.0 15.0 42.0 13.0 95.0
GDR16-95 100 / 500 28.0 20.0 15.0 44.0 17.0 95.0
GDR18-95 100 / 500 28.0 20.0 15.0 44.0 19.0 95.0
GDR8-120 100 / 500 24.0 22.0 16.5 44.0 8.4 120.0
GDR10-120 100 / 500 24.0 22.0 16.5 44.0 10.5 120.0
GDR12-120 100 / 500 24.0 22.0 16.5 44.0 13.0 120.0
GDR16-120 100 / 500 28.0 22.0 16.5 48.0 17.0 120.0
GDR10-150 100 / 500 30.0 24.0 19.0 50.0 10.5 150.0
GDR12-150 100 / 500 30.0 24.0 19.0 50.0 13.0 150.0
GDR16-150 100 / 500 30.0 24.0 19.0 50.0 17.0 150.0
GDR10-185 100 / 500 36.0 28.0 21.0 50.0 10.5 185.0
GDR12-185 100 / 500 36.0 28.0 21.0 50.0 13.0 185.0
GDR16-185 100 / 500 36.0 28.0 21.0 50.0 17.0 185.0
GDR10-240 100 / 500 38.0 32.0 23.5 56.0 10.5 240.0
GDR12-240 100 / 500 38.0 32.0 23.5 56.0 13.0 240.0
GDR16-240 100 / 500 38.0 32.0 23.5 56.0 17.0 240.0
